ENCOUNTER AT2
All-Terrain SUV/LT

Discover the new standard of all-season drivability and all-terrain durability with the Sumitomo Encounter AT2 - the go-anywhere, do-anything all-terrain tire for CUVs, SUVs and Pickups.

  • Light Truck
  • Suv
  • All Terrain
  • 3 Peak Mountain Snowflake
  • Mud+Snow Rated
Does this tire fit my Vehicle? Store Finder

Warranty

UP TO 65K Limited Treadwear Warranty
  • 6,5000-Mile / 100,000-km Treadwear for Metric and LT sizes
  • 2-Year, 24/7 Tire Roadside Assistance
  • 1-Year Tire Road Hazard Protection Plan
  • 30-Day Test Drive
  • Lifetime Replacement for Workmanship and Material Defects
DOWNLOAD WARRANTY INFO
SUMITOMO TREAD TECHNOLOGY
Encounter Your Road to All-Terrain Versatility

Non-directional, 4-rib tread design optimizes ride stability and protects against irregular wear

Deep circumferential grooves boosts wet grip performance and provides superior wear life

Optimized tread design pattern stabilizes handling and steering response for a smooth, quiet ride

Variable-width shoulder lugs evacuate rocks, sand and other debris for superior off-road grip

3D wave sipes enhance traction and performance in snow, mud and other soft surfaces

Severe Snow Certification ensures reliable winter performance in heavy snow

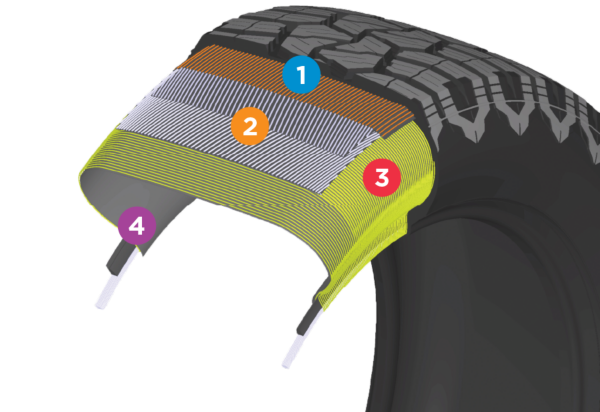

CONSTRUCTION TECHNOLOGY
Encounter Your Road to Built-to-Last Performance
  1. Jointless nylon cap ply levels load distribution and provides smooth handling
  2. Wide, stiff steel belts enhance tread stiffness for responsive handling
  3. High-tension casing ply balances stability and comfort during high-speed travel
  4. Hard bead apex reinforces sidewall and casing for reliable towing and hauling
CONSTRUCTION TECHNOLOGY

Performance Ratings

Off Road Traction
10
Snow and Ice Traction
10
Tread Life
9
Wet Performance Handling
9
Ride Comfort
8
Tire Specifications
Select a tire size below to get started
TIRE SIZE
Not sure which size to select?
FIND MY TIRE SIZE

Tire Specifications

265/70R17 Change Size
  • TREADWEAR 660
  • TRACTION A
  • TEMPERATURE B
  • SPEED RATING T
  • LOAD INDEX 115
PRODUCT CODESUMI-AT287
TIRE SIZE265/70R17
SERVICE DESCRIPTION115T
Measuring Rim Width (IN.)8.0
APPROVED RIM WIDTH MIN. - MAX. (IN.)7.0 - 9.0
MAXIMUM AIR (LBS. PSI)51
MAXIMUM LOAD (LBS.)2679
LIMITED TREADWEAR WARRANTY65,000-Mile
MAXIMUM AIR DUAL (LBS. PSI)-
MAXIMUM LOAD DUAL (LBS.)-
OVERALL DIAMETER (IN.)31.6
SECTION WIDTH (IN.)11.3
TREAD WIDTH (IN.)8.8
STATIC LOADED RADIUS (IN.)14.1
REVS. PER MILE675
TREAD DEPTH13.0
SHIP WEIGHT MIN. (LBS.)44.3

Tire Specifications

LT245/75R17 Change Size
  • TREADWEAR
  • TRACTION
  • TEMPERATURE
  • SPEED RATING S
  • LOAD INDEX 121/118
PRODUCT CODESUMI-AT219
TIRE SIZELT245/75R17
SERVICE DESCRIPTION121/118S
Measuring Rim Width (IN.)7.0
APPROVED RIM WIDTH MIN. - MAX. (IN.)6.5 - 8.0
MAXIMUM AIR (LBS. PSI)80
MAXIMUM LOAD (LBS.)3195
LIMITED TREADWEAR WARRANTY65,000-Mile
MAXIMUM AIR DUAL (LBS. PSI)80
MAXIMUM LOAD DUAL (LBS.)2910
OVERALL DIAMETER (IN.)31.5
SECTION WIDTH (IN.)9.8
TREAD WIDTH (IN.)7.7
STATIC LOADED RADIUS (IN.)14.1
REVS. PER MILE671
TREAD DEPTH16.0
SHIP WEIGHT MIN. (LBS.)47.8

Tire Specifications

245/75R16 Change Size
  • TREADWEAR 660
  • TRACTION A
  • TEMPERATURE B
  • SPEED RATING T
  • LOAD INDEX 111
PRODUCT CODESUMI-AT279
TIRE SIZE245/75R16
SERVICE DESCRIPTION111T
Measuring Rim Width (IN.)7.0
APPROVED RIM WIDTH MIN. - MAX. (IN.)6.5 - 8.0
MAXIMUM AIR (LBS. PSI)51
MAXIMUM LOAD (LBS.)2403
LIMITED TREADWEAR WARRANTY65,000-Mile
MAXIMUM AIR DUAL (LBS. PSI)-
MAXIMUM LOAD DUAL (LBS.)-
OVERALL DIAMETER (IN.)30.5
SECTION WIDTH (IN.)10.0
TREAD WIDTH (IN.)7.7
STATIC LOADED RADIUS (IN.)13.5
REVS. PER MILE696
TREAD DEPTH12.0
SHIP WEIGHT MIN. (LBS.)38.6

Tire Specifications

265/50R20 Change Size
  • TREADWEAR 660
  • TRACTION A
  • TEMPERATURE B
  • SPEED RATING T
  • LOAD INDEX 111
PRODUCT CODESUMI-AT285
TIRE SIZE265/50R20
SERVICE DESCRIPTION111T
Measuring Rim Width (IN.)8.5
APPROVED RIM WIDTH MIN. - MAX. (IN.)7.5 - 9.5
MAXIMUM AIR (LBS. PSI)50
MAXIMUM LOAD (LBS.)2403
LIMITED TREADWEAR WARRANTY65,000-Mile
MAXIMUM AIR DUAL (LBS. PSI)-
MAXIMUM LOAD DUAL (LBS.)-
OVERALL DIAMETER (IN.)30.5
SECTION WIDTH (IN.)11.1
TREAD WIDTH (IN.)9.3
STATIC LOADED RADIUS (IN.)14.1
REVS. PER MILE688
TREAD DEPTH12.0
SHIP WEIGHT MIN. (LBS.)44.3

Tire Specifications

265/70R18 Change Size
  • TREADWEAR 660
  • TRACTION A
  • TEMPERATURE B
  • SPEED RATING T
  • LOAD INDEX 116
PRODUCT CODESUMI-AT222
TIRE SIZE265/70R18
SERVICE DESCRIPTION116T
Measuring Rim Width (IN.)8.0
APPROVED RIM WIDTH MIN. - MAX. (IN.)7.0 - 9.0
MAXIMUM AIR (LBS. PSI)51
MAXIMUM LOAD (LBS.)2756
LIMITED TREADWEAR WARRANTY65,000-Mile
MAXIMUM AIR DUAL (LBS. PSI)-
MAXIMUM LOAD DUAL (LBS.)-
OVERALL DIAMETER (IN.)32.6
SECTION WIDTH (IN.)11.1
TREAD WIDTH (IN.)8.8
STATIC LOADED RADIUS (IN.)14.6
REVS. PER MILE653
TREAD DEPTH13.0
SHIP WEIGHT MIN. (LBS.)45.1

Tire Specifications

275/65R18 Change Size
  • TREADWEAR 660
  • TRACTION A
  • TEMPERATURE B
  • SPEED RATING T
  • LOAD INDEX 116
PRODUCT CODESUMI-AT263
TIRE SIZE275/65R18
SERVICE DESCRIPTION116T
Measuring Rim Width (IN.)8.0
APPROVED RIM WIDTH MIN. - MAX. (IN.)7.5 - 9.5
MAXIMUM AIR (LBS. PSI)51
MAXIMUM LOAD (LBS.)2756
LIMITED TREADWEAR WARRANTY65,000-Mile
MAXIMUM AIR DUAL (LBS. PSI)-
MAXIMUM LOAD DUAL (LBS.)-
OVERALL DIAMETER (IN.)32.1
SECTION WIDTH (IN.)11.1
TREAD WIDTH (IN.)9.3
STATIC LOADED RADIUS (IN.)14.4
REVS. PER MILE663
TREAD DEPTH13.0
SHIP WEIGHT MIN. (LBS.)47.3

Tire Specifications

LT265/60R20 Change Size
  • TREADWEAR
  • TRACTION
  • TEMPERATURE
  • SPEED RATING S
  • LOAD INDEX 121/118
PRODUCT CODESUMI-AT275
TIRE SIZELT265/60R20
SERVICE DESCRIPTION121/118S
Measuring Rim Width (IN.)8.0
APPROVED RIM WIDTH MIN. - MAX. (IN.)8.0 - 9.5
MAXIMUM AIR (LBS. PSI)80
MAXIMUM LOAD (LBS.)3195
LIMITED TREADWEAR WARRANTY65,000-Mile
MAXIMUM AIR DUAL (LBS. PSI)80
MAXIMUM LOAD DUAL (LBS.)2910
OVERALL DIAMETER (IN.)32.7
SECTION WIDTH (IN.)10.6
TREAD WIDTH (IN.)8.8
STATIC LOADED RADIUS (IN.)14.9
REVS. PER MILE645
TREAD DEPTH17.0
SHIP WEIGHT MIN. (LBS.)53.4

Tire Specifications

LT265/70R18 Change Size
  • TREADWEAR
  • TRACTION
  • TEMPERATURE
  • SPEED RATING S
  • LOAD INDEX 124/121
PRODUCT CODESUMI-AT230
TIRE SIZELT265/70R18
SERVICE DESCRIPTION124/121S
Measuring Rim Width (IN.)8.0
APPROVED RIM WIDTH MIN. - MAX. (IN.)7.0 - 9.0
MAXIMUM AIR (LBS. PSI)80
MAXIMUM LOAD (LBS.)3525
LIMITED TREADWEAR WARRANTY65,000-Mile
MAXIMUM AIR DUAL (LBS. PSI)80
MAXIMUM LOAD DUAL (LBS.)3195
OVERALL DIAMETER (IN.)32.9
SECTION WIDTH (IN.)11.1
TREAD WIDTH (IN.)8.8
STATIC LOADED RADIUS (IN.)14.8
REVS. PER MILE642
TREAD DEPTH17.0
SHIP WEIGHT MIN. (LBS.)55.2

Tire Specifications

LT235/80R17 Change Size
  • TREADWEAR
  • TRACTION
  • TEMPERATURE
  • SPEED RATING R
  • LOAD INDEX 120/117
PRODUCT CODESUMI-AT295
TIRE SIZELT235/80R17
SERVICE DESCRIPTION120/117R
Measuring Rim Width (IN.)6.5
APPROVED RIM WIDTH MIN. - MAX. (IN.)6.0 - 8.0
MAXIMUM AIR (LBS. PSI)80
MAXIMUM LOAD (LBS.)3085
LIMITED TREADWEAR WARRANTY65,000-Mile
MAXIMUM AIR DUAL (LBS. PSI)80
MAXIMUM LOAD DUAL (LBS.)2835
OVERALL DIAMETER (IN.)31.9
SECTION WIDTH (IN.)9.5
TREAD WIDTH (IN.)7.1
STATIC LOADED RADIUS (IN.)14.3
REVS. PER MILE663
TREAD DEPTH16.0
SHIP WEIGHT MIN. (LBS.)46.4

Tire Specifications

225/65R17 Change Size
  • TREADWEAR 660
  • TRACTION B
  • TEMPERATURE B
  • SPEED RATING T
  • LOAD INDEX 116
PRODUCT CODESUMI-AT276
TIRE SIZE225/65R17
SERVICE DESCRIPTION116T
Measuring Rim Width (IN.)6.5
APPROVED RIM WIDTH MIN. - MAX. (IN.)6.0 - 8.0
MAXIMUM AIR (LBS. PSI)50
MAXIMUM LOAD (LBS.)2094
LIMITED TREADWEAR WARRANTY65,000-Mile
MAXIMUM AIR DUAL (LBS. PSI)-
MAXIMUM LOAD DUAL (LBS.)-
OVERALL DIAMETER (IN.)28.5
SECTION WIDTH (IN.)9.0
TREAD WIDTH (IN.)7.6
STATIC LOADED RADIUS (IN.)12.9
REVS. PER MILE742
TREAD DEPTH12.0
SHIP WEIGHT MIN. (LBS.)32.0

Tire Specifications

LT305/55R20 Change Size
  • TREADWEAR
  • TRACTION
  • TEMPERATURE
  • SPEED RATING S
  • LOAD INDEX 121/118
PRODUCT CODESUMI-AT254
TIRE SIZELT305/55R20
SERVICE DESCRIPTION121/118S
Measuring Rim Width (IN.)9.5
APPROVED RIM WIDTH MIN. - MAX. (IN.)9.0 - 11.0
MAXIMUM AIR (LBS. PSI)65
MAXIMUM LOAD (LBS.)3195
LIMITED TREADWEAR WARRANTY65,000-Mile
MAXIMUM AIR DUAL (LBS. PSI)65
MAXIMUM LOAD DUAL (LBS.)2910
OVERALL DIAMETER (IN.)33.4
SECTION WIDTH (IN.)12.4
TREAD WIDTH (IN.)10.5
STATIC LOADED RADIUS (IN.)15.1
REVS. PER MILE634
TREAD DEPTH18.0
SHIP WEIGHT MIN. (LBS.)63.8

Tire Specifications

275/55R20 Change Size
  • TREADWEAR 660
  • TRACTION A
  • TEMPERATURE B
  • SPEED RATING T
  • LOAD INDEX 117
PRODUCT CODESUMI-AT273
TIRE SIZE275/55R20
SERVICE DESCRIPTION117T
Measuring Rim Width (IN.)8.5
APPROVED RIM WIDTH MIN. - MAX. (IN.)7.5 - 9.5
MAXIMUM AIR (LBS. PSI)50
MAXIMUM LOAD (LBS.)2833
LIMITED TREADWEAR WARRANTY65,000-Mile
MAXIMUM AIR DUAL (LBS. PSI)-
MAXIMUM LOAD DUAL (LBS.)-
OVERALL DIAMETER (IN.)31.9
SECTION WIDTH (IN.)11.2
TREAD WIDTH (IN.)9.4
STATIC LOADED RADIUS (IN.)14.5
REVS. PER MILE662
TREAD DEPTH12.0
SHIP WEIGHT MIN. (LBS.)46.3

Tire Specifications

35X12.50R18LT Change Size
  • TREADWEAR
  • TRACTION
  • TEMPERATURE
  • SPEED RATING R
  • LOAD INDEX 128
PRODUCT CODESUMI-AT260
TIRE SIZE35X12.50R18LT
SERVICE DESCRIPTION128R
Measuring Rim Width (IN.)10.0
APPROVED RIM WIDTH MIN. - MAX. (IN.)8.5 - 11.0
MAXIMUM AIR (LBS. PSI)80
MAXIMUM LOAD (LBS.)3970
LIMITED TREADWEAR WARRANTY65,000-Mile
MAXIMUM AIR DUAL (LBS. PSI)-
MAXIMUM LOAD DUAL (LBS.)-
OVERALL DIAMETER (IN.)34.6
SECTION WIDTH (IN.)13.2
TREAD WIDTH (IN.)10.3
STATIC LOADED RADIUS (IN.)15.3
REVS. PER MILE618
TREAD DEPTH18.0
SHIP WEIGHT MIN. (LBS.)74.1

Tire Specifications

LT285/70R17 Change Size
  • TREADWEAR
  • TRACTION
  • TEMPERATURE
  • SPEED RATING S
  • LOAD INDEX 126/123
PRODUCT CODESUMI-AT284
TIRE SIZELT285/70R17
SERVICE DESCRIPTION126/123S
Measuring Rim Width (IN.)8.5
APPROVED RIM WIDTH MIN. - MAX. (IN.)7.5 - 9.5
MAXIMUM AIR (LBS. PSI)80
MAXIMUM LOAD (LBS.)3750
LIMITED TREADWEAR WARRANTY65,000-Mile
MAXIMUM AIR DUAL (LBS. PSI)80
MAXIMUM LOAD DUAL (LBS.)3415
OVERALL DIAMETER (IN.)32.8
SECTION WIDTH (IN.)11.5
TREAD WIDTH (IN.)9.4
STATIC LOADED RADIUS (IN.)14.6
REVS. PER MILE647
TREAD DEPTH17.0
SHIP WEIGHT MIN. (LBS.)55.3

Tire Specifications

35X12.50R22LT Change Size
  • TREADWEAR
  • TRACTION
  • TEMPERATURE
  • SPEED RATING Q
  • LOAD INDEX 121
PRODUCT CODESUMI-AT269
TIRE SIZE35X12.50R22LT
SERVICE DESCRIPTION121Q
Measuring Rim Width (IN.)10.0
APPROVED RIM WIDTH MIN. - MAX. (IN.)8.5 - 11.0
MAXIMUM AIR (LBS. PSI)80
MAXIMUM LOAD (LBS.)3195
LIMITED TREADWEAR WARRANTY65,000-Mile
MAXIMUM LOAD DUAL (LBS.)-
OVERALL DIAMETER (IN.)34.6
SECTION WIDTH (IN.)12.6
TREAD WIDTH (IN.)11.3
STATIC LOADED RADIUS (IN.)15.8
REVS. PER MILE608
TREAD DEPTH18.0
SHIP WEIGHT MIN. (LBS.)70.6

Tire Specifications

33X12.50R20LT Change Size
  • TREADWEAR
  • TRACTION
  • TEMPERATURE
  • SPEED RATING Q
  • LOAD INDEX 114
PRODUCT CODESUMI-AT277
TIRE SIZE33X12.50R20LT
SERVICE DESCRIPTION114Q
Measuring Rim Width (IN.)10.0
APPROVED RIM WIDTH MIN. - MAX. (IN.)8.5 - 11.0
MAXIMUM AIR (LBS. PSI)65
MAXIMUM LOAD (LBS.)2600
LIMITED TREADWEAR WARRANTY65,000-Mile
MAXIMUM AIR DUAL (LBS. PSI)-
MAXIMUM LOAD DUAL (LBS.)-
OVERALL DIAMETER (IN.)32.7
SECTION WIDTH (IN.)12.6
TREAD WIDTH (IN.)11.1
STATIC LOADED RADIUS (IN.)14.8
REVS. PER MILE647
TREAD DEPTH18.0
SHIP WEIGHT MIN. (LBS.)62.8

Tire Specifications

LT235/85R16 Change Size
  • TREADWEAR
  • TRACTION
  • TEMPERATURE
  • SPEED RATING R
  • LOAD INDEX 120/116
PRODUCT CODESUMI-AT217
TIRE SIZELT235/85R16
SERVICE DESCRIPTION120/116R
Measuring Rim Width (IN.)6.5
APPROVED RIM WIDTH MIN. - MAX. (IN.)6.0 - 7.5
MAXIMUM AIR (LBS. PSI)80
MAXIMUM LOAD (LBS.)3042
LIMITED TREADWEAR WARRANTY65,000-Mile
MAXIMUM AIR DUAL (LBS. PSI)80
MAXIMUM LOAD DUAL (LBS.)2778
OVERALL DIAMETER (IN.)31.7
SECTION WIDTH (IN.)9.3
TREAD WIDTH (IN.)7.2
STATIC LOADED RADIUS (IN.)14.1
REVS. PER MILE669
TREAD DEPTH16.0
SHIP WEIGHT MIN. (LBS.)46.9

Tire Specifications

LT245/75R16 Change Size
  • TREADWEAR
  • TRACTION
  • TEMPERATURE
  • SPEED RATING R
  • LOAD INDEX 120/116
PRODUCT CODESUMI-AT238
TIRE SIZELT245/75R16
SERVICE DESCRIPTION120/116R
Measuring Rim Width (IN.)7.0
APPROVED RIM WIDTH MIN. - MAX. (IN.)6.5 - 8.0
MAXIMUM AIR (LBS. PSI)80
MAXIMUM LOAD (LBS.)3042
LIMITED TREADWEAR WARRANTY65,000-Mile
MAXIMUM AIR DUAL (LBS. PSI)80
MAXIMUM LOAD DUAL (LBS.)2778
OVERALL DIAMETER (IN.)30.5
SECTION WIDTH (IN.)9.8
TREAD WIDTH (IN.)7.7
STATIC LOADED RADIUS (IN.)13.6
REVS. PER MILE695
TREAD DEPTH16.0
SHIP WEIGHT MIN. (LBS.)43.4

Tire Specifications

LT285/60R20 Change Size
  • TREADWEAR
  • TRACTION
  • TEMPERATURE
  • SPEED RATING R
  • LOAD INDEX 125/122
PRODUCT CODESUMI-AT288
TIRE SIZELT285/60R20
SERVICE DESCRIPTION125/122R
Measuring Rim Width (IN.)8.5
APPROVED RIM WIDTH MIN. - MAX. (IN.)8.0 - 10.0
MAXIMUM AIR (LBS. PSI)80
MAXIMUM LOAD (LBS.)3640
LIMITED TREADWEAR WARRANTY65,000-Mile
MAXIMUM AIR DUAL (LBS. PSI)80
MAXIMUM LOAD DUAL (LBS.)3305
OVERALL DIAMETER (IN.)33.6
SECTION WIDTH (IN.)11.3
TREAD WIDTH (IN.)9.4
STATIC LOADED RADIUS (IN.)15.2
REVS. PER MILE630
TREAD DEPTH17.0
SHIP WEIGHT MIN. (LBS.)57.3

Tire Specifications

LT315/70R17 Change Size
  • TREADWEAR
  • TRACTION
  • TEMPERATURE
  • SPEED RATING S
  • LOAD INDEX 121/118
PRODUCT CODESUMI-AT202
TIRE SIZELT315/70R17
SERVICE DESCRIPTION121/118S
Measuring Rim Width (IN.)9.5
APPROVED RIM WIDTH MIN. - MAX. (IN.)8.0 - 10.5
MAXIMUM AIR (LBS. PSI)50
MAXIMUM LOAD (LBS.)3195
LIMITED TREADWEAR WARRANTY65,000-Mile
MAXIMUM AIR DUAL (LBS. PSI)50
MAXIMUM LOAD DUAL (LBS.)2910
OVERALL DIAMETER (IN.)34.6
SECTION WIDTH (IN.)12.9
TREAD WIDTH (IN.)10.2
STATIC LOADED RADIUS (IN.)15.3
REVS. PER MILE613
TREAD DEPTH18.0
SHIP WEIGHT MIN. (LBS.)72.1

Tire Specifications

235/60R18 Change Size
  • TREADWEAR 660
  • TRACTION A
  • TEMPERATURE B
  • SPEED RATING T
  • LOAD INDEX 103
PRODUCT CODESUMI-AT249
TIRE SIZE235/60R18
SERVICE DESCRIPTION103T
Measuring Rim Width (IN.)7.0
APPROVED RIM WIDTH MIN. - MAX. (IN.)6.5 - 8.5
MAXIMUM AIR (LBS. PSI)51
MAXIMUM LOAD (LBS.)1929
LIMITED TREADWEAR WARRANTY65,000-Mile
MAXIMUM AIR DUAL (LBS. PSI)-
MAXIMUM LOAD DUAL (LBS.)-
OVERALL DIAMETER (IN.)29.1
SECTION WIDTH (IN.)9.4
TREAD WIDTH (IN.)7.9
STATIC LOADED RADIUS (IN.)13.2
REVS. PER MILE726
TREAD DEPTH12.0
SHIP WEIGHT MIN. (LBS.)37.0

Tire Specifications

LT285/55R20 Change Size
  • TREADWEAR
  • TRACTION
  • TEMPERATURE
  • SPEED RATING S
  • LOAD INDEX 122/119
PRODUCT CODESUMI-AT290
TIRE SIZELT285/55R20
SERVICE DESCRIPTION122/119S
Measuring Rim Width (IN.)9.0
APPROVED RIM WIDTH MIN. - MAX. (IN.)8.5 - 10.0
MAXIMUM AIR (LBS. PSI)80
MAXIMUM LOAD (LBS.)3305
LIMITED TREADWEAR WARRANTY65,000-Mile
MAXIMUM AIR DUAL (LBS. PSI)80
MAXIMUM LOAD DUAL (LBS.)3000
OVERALL DIAMETER (IN.)32.4
SECTION WIDTH (IN.)11.7
TREAD WIDTH (IN.)9.8
STATIC LOADED RADIUS (IN.)14.7
REVS. PER MILE652
TREAD DEPTH17.0
SHIP WEIGHT MIN. (LBS.)58.3

Tire Specifications

235/75R17 Change Size
  • TREADWEAR 660
  • TRACTION A
  • TEMPERATURE B
  • SPEED RATING T
  • LOAD INDEX 109
PRODUCT CODESUMI-AT245
TIRE SIZE235/75R17
SERVICE DESCRIPTION109T
Measuring Rim Width (IN.)6.5
APPROVED RIM WIDTH MIN. - MAX. (IN.)6.0 - 8.0
MAXIMUM AIR (LBS. PSI)51
MAXIMUM LOAD (LBS.)2271
LIMITED TREADWEAR WARRANTY65,000-Mile
MAXIMUM AIR DUAL (LBS. PSI)-
MAXIMUM LOAD DUAL (LBS.)-
OVERALL DIAMETER (IN.)30.9
SECTION WIDTH (IN.)9.3
TREAD WIDTH (IN.)7.4
STATIC LOADED RADIUS (IN.)13.9
REVS. PER MILE683
TREAD DEPTH12.0
SHIP WEIGHT MIN. (LBS.)37.4

Tire Specifications

265/65R18 Change Size
  • TREADWEAR 660
  • TRACTION A
  • TEMPERATURE B
  • SPEED RATING T
  • LOAD INDEX 114
PRODUCT CODESUMI-AT256
TIRE SIZE265/65R18
SERVICE DESCRIPTION114T
Measuring Rim Width (IN.)8.0
APPROVED RIM WIDTH MIN. - MAX. (IN.)7.5 - 9.5
MAXIMUM AIR (LBS. PSI)51
MAXIMUM LOAD (LBS.)2601
LIMITED TREADWEAR WARRANTY65,000-Mile
MAXIMUM AIR DUAL (LBS. PSI)-
MAXIMUM LOAD DUAL (LBS.)-
OVERALL DIAMETER (IN.)31.4
SECTION WIDTH (IN.)11.0
TREAD WIDTH (IN.)8.9
STATIC LOADED RADIUS (IN.)14.1
REVS. PER MILE675
TREAD DEPTH13.0
SHIP WEIGHT MIN. (LBS.)43.8

Tire Specifications

LT285/55R22 Change Size
  • TREADWEAR
  • TRACTION
  • TEMPERATURE
  • SPEED RATING S
  • LOAD INDEX 124/121
PRODUCT CODESUMI-AT297
TIRE SIZELT285/55R22
SERVICE DESCRIPTION124/121S
Measuring Rim Width (IN.)9.0
APPROVED RIM WIDTH MIN. - MAX. (IN.)8.5 - 10.0
MAXIMUM AIR (LBS. PSI)80
MAXIMUM LOAD (LBS.)3525
LIMITED TREADWEAR WARRANTY65,000-Mile
MAXIMUM AIR DUAL (LBS. PSI)80
MAXIMUM LOAD DUAL (LBS.)3195
OVERALL DIAMETER (IN.)34.6
SECTION WIDTH (IN.)11.6
TREAD WIDTH (IN.)9.8
STATIC LOADED RADIUS (IN.)15.8
REVS. PER MILE608
TREAD DEPTH17.0
SHIP WEIGHT MIN. (LBS.)64.9

Tire Specifications

LT295/60R20 Change Size
  • TREADWEAR
  • TRACTION
  • TEMPERATURE
  • SPEED RATING Q
  • LOAD INDEX 126/123
PRODUCT CODESUMI-AT221
TIRE SIZELT295/60R20
SERVICE DESCRIPTION126/123Q
Measuring Rim Width (IN.)8.5
APPROVED RIM WIDTH MIN. - MAX. (IN.)8.5 - 10.5
MAXIMUM AIR (LBS. PSI)80
MAXIMUM LOAD (LBS.)3750
LIMITED TREADWEAR WARRANTY65,000-Mile
MAXIMUM AIR DUAL (LBS. PSI)80
MAXIMUM LOAD DUAL (LBS.)3415
OVERALL DIAMETER (IN.)33.9
SECTION WIDTH (IN.)11.8
TREAD WIDTH (IN.)9.8
STATIC LOADED RADIUS (IN.)15.3
REVS. PER MILE625
TREAD DEPTH17.0
SHIP WEIGHT MIN. (LBS.)64.4

Tire Specifications

265/60R18 Change Size
  • TREADWEAR 660
  • TRACTION A
  • TEMPERATURE B
  • SPEED RATING T
  • LOAD INDEX 110
PRODUCT CODESUMI-AT291
TIRE SIZE265/60R18
SERVICE DESCRIPTION110T
Measuring Rim Width (IN.)8.0
APPROVED RIM WIDTH MIN. - MAX. (IN.)7.5 - 9.5
MAXIMUM AIR (LBS. PSI)51
MAXIMUM LOAD (LBS.)2337
LIMITED TREADWEAR WARRANTY65,000-Mile
MAXIMUM AIR DUAL (LBS. PSI)-
MAXIMUM LOAD DUAL (LBS.)-
OVERALL DIAMETER (IN.)30.4
SECTION WIDTH (IN.)11.0
TREAD WIDTH (IN.)8.9
STATIC LOADED RADIUS (IN.)13.8
REVS. PER MILE692
TREAD DEPTH12.0
SHIP WEIGHT MIN. (LBS.)42.3

Tire Specifications

235/65R16C Change Size
  • TREADWEAR
  • TRACTION
  • TEMPERATURE
  • SPEED RATING R
  • LOAD INDEX 121/119
PRODUCT CODESUMI-AT299
TIRE SIZE235/65R16C
SERVICE DESCRIPTION121/119R
Measuring Rim Width (IN.)7.0
APPROVED RIM WIDTH MIN. - MAX. (IN.)6.5 - 7.5
MAXIMUM AIR (LBS. PSI)83
MAXIMUM LOAD (LBS.)3195
LIMITED TREADWEAR WARRANTY65,000-Mile
MAXIMUM AIR DUAL (LBS. PSI)83
MAXIMUM LOAD DUAL (LBS.)3000
OVERALL DIAMETER (IN.)28.1
SECTION WIDTH (IN.)9.4
TREAD WIDTH (IN.)7.8
STATIC LOADED RADIUS (IN.)12.6
REVS. PER MILE755
TREAD DEPTH16.0
SHIP WEIGHT MIN. (LBS.)40.4

Tire Specifications

255/70R18 Change Size
  • TREADWEAR 660
  • TRACTION A
  • TEMPERATURE B
  • SPEED RATING T
  • LOAD INDEX 113
PRODUCT CODESUMI-AT252
TIRE SIZE255/70R18
SERVICE DESCRIPTION113T
Measuring Rim Width (IN.)7.5
APPROVED RIM WIDTH MIN. - MAX. (IN.)6.5 - 8.5
MAXIMUM AIR (LBS. PSI)51
MAXIMUM LOAD (LBS.)2535
LIMITED TREADWEAR WARRANTY65,000-Mile
MAXIMUM AIR DUAL (LBS. PSI)-
MAXIMUM LOAD DUAL (LBS.)-
OVERALL DIAMETER (IN.)32.1
SECTION WIDTH (IN.)10.6
TREAD WIDTH (IN.)8.5
STATIC LOADED RADIUS (IN.)14.4
REVS. PER MILE656
TREAD DEPTH12.0
SHIP WEIGHT MIN. (LBS.)44.7

Tire Specifications

LT275/55R20 Change Size
  • TREADWEAR
  • TRACTION
  • TEMPERATURE
  • SPEED RATING S
  • LOAD INDEX 120/117
PRODUCT CODESUMI-AT207
TIRE SIZELT275/55R20
SERVICE DESCRIPTION120/117S
Measuring Rim Width (IN.)8.5
APPROVED RIM WIDTH MIN. - MAX. (IN.)8.0 - 9.5
MAXIMUM AIR (LBS. PSI)80
MAXIMUM LOAD (LBS.)3085
LIMITED TREADWEAR WARRANTY65,000-Mile
MAXIMUM AIR DUAL (LBS. PSI)80
MAXIMUM LOAD DUAL (LBS.)2835
OVERALL DIAMETER (IN.)32.0
SECTION WIDTH (IN.)11.1
TREAD WIDTH (IN.)9.5
STATIC LOADED RADIUS (IN.)14.6
REVS. PER MILE659
TREAD DEPTH17.0
SHIP WEIGHT MIN. (LBS.)54.0

Tire Specifications

265/70R16 Change Size
  • TREADWEAR 660
  • TRACTION A
  • TEMPERATURE B
  • SPEED RATING T
  • LOAD INDEX 112
PRODUCT CODESUMI-AT293
TIRE SIZE265/70R16
SERVICE DESCRIPTION112T
Measuring Rim Width (IN.)8.0
APPROVED RIM WIDTH MIN. - MAX. (IN.)7.0 - 9.0
MAXIMUM AIR (LBS. PSI)51
MAXIMUM LOAD (LBS.)2469
LIMITED TREADWEAR WARRANTY65,000-Mile
MAXIMUM AIR DUAL (LBS. PSI)-
MAXIMUM LOAD DUAL (LBS.)-
OVERALL DIAMETER (IN.)30.6
SECTION WIDTH (IN.)11.2
TREAD WIDTH (IN.)8.8
STATIC LOADED RADIUS (IN.)13.6
REVS. PER MILE692
TREAD DEPTH13.0
SHIP WEIGHT MIN. (LBS.)42.2

Tire Specifications

LT245/70R17 Change Size
  • TREADWEAR
  • TRACTION
  • TEMPERATURE
  • SPEED RATING S
  • LOAD INDEX 119/116
PRODUCT CODESUMI-AT270
TIRE SIZELT245/70R17
SERVICE DESCRIPTION119/116S
Measuring Rim Width (IN.)7.0
APPROVED RIM WIDTH MIN. - MAX. (IN.)6.5 - 8.0
MAXIMUM AIR (LBS. PSI)80
MAXIMUM LOAD (LBS.)3000
LIMITED TREADWEAR WARRANTY65,000-Mile
MAXIMUM AIR DUAL (LBS. PSI)80
MAXIMUM LOAD DUAL (LBS.)2755
OVERALL DIAMETER (IN.)30.6
SECTION WIDTH (IN.)9.8
TREAD WIDTH (IN.)8.1
STATIC LOADED RADIUS (IN.)13.7
REVS. PER MILE691
TREAD DEPTH16.0
SHIP WEIGHT MIN. (LBS.)46.4

Tire Specifications

35X12.50R17LT Change Size
  • TREADWEAR
  • TRACTION
  • TEMPERATURE
  • SPEED RATING R
  • LOAD INDEX 125
PRODUCT CODESUMI-AT294
TIRE SIZE35X12.50R17LT
SERVICE DESCRIPTION125R
Measuring Rim Width (IN.)10.0
APPROVED RIM WIDTH MIN. - MAX. (IN.)8.0 - 10.5
MAXIMUM AIR (LBS. PSI)65
MAXIMUM LOAD (LBS.)3640
LIMITED TREADWEAR WARRANTY65,000-Mile
MAXIMUM AIR DUAL (LBS. PSI)65
MAXIMUM LOAD DUAL (LBS.)-
OVERALL DIAMETER (IN.)34.5
SECTION WIDTH (IN.)12.5
TREAD WIDTH (IN.)10.0
STATIC LOADED RADIUS (IN.)15.2
REVS. PER MILE615
TREAD DEPTH18.0
SHIP WEIGHT MIN. (LBS.)72.7

Tire Specifications

35X12.50R20LT Change Size
  • TREADWEAR
  • TRACTION
  • TEMPERATURE
  • SPEED RATING Q
  • LOAD INDEX 121
PRODUCT CODESUMI-AT271
TIRE SIZE35X12.50R20LT
SERVICE DESCRIPTION121Q
Measuring Rim Width (IN.)10.0
APPROVED RIM WIDTH MIN. - MAX. (IN.)8.5 - 11.0
MAXIMUM AIR (LBS. PSI)65
MAXIMUM LOAD (LBS.)3195
LIMITED TREADWEAR WARRANTY65,000-Mile
MAXIMUM LOAD DUAL (LBS.)-
OVERALL DIAMETER (IN.)34.5
SECTION WIDTH (IN.)12.5
TREAD WIDTH (IN.)10.8
STATIC LOADED RADIUS (IN.)15.5
REVS. PER MILE615
TREAD DEPTH18.0
SHIP WEIGHT MIN. (LBS.)72.4

Tire Specifications

LT265/75R16 Change Size
  • TREADWEAR
  • TRACTION
  • TEMPERATURE
  • SPEED RATING R
  • LOAD INDEX 123/120
PRODUCT CODESUMI-AT239
TIRE SIZELT265/75R16
SERVICE DESCRIPTION123/120R
Measuring Rim Width (IN.)7.5
APPROVED RIM WIDTH MIN. - MAX. (IN.)7.0 - 9.0
MAXIMUM AIR (LBS. PSI)80
MAXIMUM LOAD (LBS.)3415
LIMITED TREADWEAR WARRANTY65,000-Mile
MAXIMUM AIR DUAL (LBS. PSI)80
MAXIMUM LOAD DUAL (LBS.)3085
OVERALL DIAMETER (IN.)31.7
SECTION WIDTH (IN.)10.5
TREAD WIDTH (IN.)8.3
STATIC LOADED RADIUS (IN.)14.1
REVS. PER MILE669
TREAD DEPTH17.0
SHIP WEIGHT MIN. (LBS.)52.4

Tire Specifications

255/70R17 Change Size
  • TREADWEAR 660
  • TRACTION A
  • TEMPERATURE B
  • SPEED RATING T
  • LOAD INDEX 112
PRODUCT CODESUMI-AT210
TIRE SIZE255/70R17
SERVICE DESCRIPTION112T
Measuring Rim Width (IN.)7.5
APPROVED RIM WIDTH MIN. - MAX. (IN.)6.5 - 8.5
MAXIMUM AIR (LBS. PSI)51
MAXIMUM LOAD (LBS.)2469
LIMITED TREADWEAR WARRANTY65,000-Mile
MAXIMUM AIR DUAL (LBS. PSI)-
MAXIMUM LOAD DUAL (LBS.)-
OVERALL DIAMETER (IN.)31.1
SECTION WIDTH (IN.)10.6
TREAD WIDTH (IN.)8.5
STATIC LOADED RADIUS (IN.)13.9
REVS. PER MILE679
TREAD DEPTH12.0
SHIP WEIGHT MIN. (LBS.)39.6

Tire Specifications

LT265/70R17 Change Size
  • TREADWEAR
  • TRACTION
  • TEMPERATURE
  • SPEED RATING S
  • LOAD INDEX 123/120
PRODUCT CODESUMI-AT292
TIRE SIZELT265/70R17
SERVICE DESCRIPTION123/120S
Measuring Rim Width (IN.)8.0
APPROVED RIM WIDTH MIN. - MAX. (IN.)7.0 - 9.0
MAXIMUM AIR (LBS. PSI)80
MAXIMUM LOAD (LBS.)3415
LIMITED TREADWEAR WARRANTY65,000-Mile
MAXIMUM AIR DUAL (LBS. PSI)80
MAXIMUM LOAD DUAL (LBS.)3085
OVERALL DIAMETER (IN.)31.7
SECTION WIDTH (IN.)10.7
TREAD WIDTH (IN.)8.8
STATIC LOADED RADIUS (IN.)14.2
REVS. PER MILE667
TREAD DEPTH17.0
SHIP WEIGHT MIN. (LBS.)52.3

Tire Specifications

LT225/75R16 Change Size
  • TREADWEAR
  • TRACTION
  • TEMPERATURE
  • SPEED RATING R
  • LOAD INDEX 115/112
PRODUCT CODESUMI-AT226
TIRE SIZELT225/75R16
SERVICE DESCRIPTION115/112R
Measuring Rim Width (IN.)6.0
APPROVED RIM WIDTH MIN. - MAX. (IN.)6.0 - 7.5
MAXIMUM AIR (LBS. PSI)80
MAXIMUM LOAD (LBS.)2680
LIMITED TREADWEAR WARRANTY65,000-Mile
MAXIMUM AIR DUAL (LBS. PSI)80
MAXIMUM LOAD DUAL (LBS.)2470
OVERALL DIAMETER (IN.)29.4
SECTION WIDTH (IN.)9.0
TREAD WIDTH (IN.)7.1
STATIC LOADED RADIUS (IN.)13.1
REVS. PER MILE719
TREAD DEPTH15.0
SHIP WEIGHT MIN. (LBS.)39.9

Tire Specifications

255/65R17 Change Size
  • TREADWEAR 660
  • TRACTION A
  • TEMPERATURE B
  • SPEED RATING T
  • LOAD INDEX 110
PRODUCT CODESUMI-AT220
TIRE SIZE255/65R17
SERVICE DESCRIPTION110T
Measuring Rim Width (IN.)7.5
APPROVED RIM WIDTH MIN. - MAX. (IN.)7.0 - 9.0
MAXIMUM AIR (LBS. PSI)51
MAXIMUM LOAD (LBS.)2337
LIMITED TREADWEAR WARRANTY65,000-Mile
MAXIMUM AIR DUAL (LBS. PSI)-
MAXIMUM LOAD DUAL (LBS.)-
OVERALL DIAMETER (IN.)30.1
SECTION WIDTH (IN.)10.4
TREAD WIDTH (IN.)8.6
STATIC LOADED RADIUS (IN.)13.5
REVS. PER MILE706
TREAD DEPTH12.0
SHIP WEIGHT MIN. (LBS.)40.3

Tire Specifications

255/70R16 Change Size
  • TREADWEAR 660
  • TRACTION A
  • TEMPERATURE B
  • SPEED RATING T
  • LOAD INDEX 111
PRODUCT CODESUMI-AT286
TIRE SIZE255/70R16
SERVICE DESCRIPTION111T
Measuring Rim Width (IN.)7.0
APPROVED RIM WIDTH MIN. - MAX. (IN.)6.5 - 8.0
MAXIMUM AIR (LBS. PSI)51
MAXIMUM LOAD (LBS.)2403
LIMITED TREADWEAR WARRANTY65,000-Mile
MAXIMUM AIR DUAL (LBS. PSI)-
MAXIMUM LOAD DUAL (LBS.)-
OVERALL DIAMETER (IN.)30.1
SECTION WIDTH (IN.)10.6
TREAD WIDTH (IN.)8.5
STATIC LOADED RADIUS (IN.)13.4
REVS. PER MILE703
TREAD DEPTH12.0
SHIP WEIGHT MIN. (LBS.)39.4

Tire Specifications

LT285/65R18 Change Size
  • TREADWEAR
  • TRACTION
  • TEMPERATURE
  • SPEED RATING S
  • LOAD INDEX 125/122
PRODUCT CODESUMI-AT257
TIRE SIZELT285/65R18
SERVICE DESCRIPTION125/122S
Measuring Rim Width (IN.)8.5
APPROVED RIM WIDTH MIN. - MAX. (IN.)8.5 - 10.0
MAXIMUM AIR (LBS. PSI)80
MAXIMUM LOAD (LBS.)3640
LIMITED TREADWEAR WARRANTY65,000-Mile
MAXIMUM AIR DUAL (LBS. PSI)80
MAXIMUM LOAD DUAL (LBS.)3305
OVERALL DIAMETER (IN.)32.7
SECTION WIDTH (IN.)11.7
TREAD WIDTH (IN.)9.6
STATIC LOADED RADIUS (IN.)14.6
REVS. PER MILE652
TREAD DEPTH17.0
SHIP WEIGHT MIN. (LBS.)59.3

Tire Specifications

LT275/70R18 Change Size
  • TREADWEAR
  • TRACTION
  • TEMPERATURE
  • SPEED RATING S
  • LOAD INDEX 125/122
PRODUCT CODESUMI-AT272
TIRE SIZELT275/70R18
SERVICE DESCRIPTION125/122S
Measuring Rim Width (IN.)8.0
APPROVED RIM WIDTH MIN. - MAX. (IN.)7.0 - 9.0
MAXIMUM AIR (LBS. PSI)80
MAXIMUM LOAD (LBS.)3640
LIMITED TREADWEAR WARRANTY65,000-Mile
MAXIMUM AIR DUAL (LBS. PSI)80
MAXIMUM LOAD DUAL (LBS.)3305
OVERALL DIAMETER (IN.)33.4
SECTION WIDTH (IN.)11.2
TREAD WIDTH (IN.)9.1
STATIC LOADED RADIUS (IN.)15
REVS. PER MILE632
TREAD DEPTH17.0
SHIP WEIGHT MIN. (LBS.)57.5

Tire Specifications

LT295/70R18 Change Size
  • TREADWEAR
  • TRACTION
  • TEMPERATURE
  • SPEED RATING S
  • LOAD INDEX 129/126
PRODUCT CODESUMI-AT223
TIRE SIZELT295/70R18
SERVICE DESCRIPTION129/126S
Measuring Rim Width (IN.)8.5
APPROVED RIM WIDTH MIN. - MAX. (IN.)7.5 - 10.0
MAXIMUM AIR (LBS. PSI)80
MAXIMUM LOAD (LBS.)4080
LIMITED TREADWEAR WARRANTY65,000-Mile
MAXIMUM AIR DUAL (LBS. PSI)80
MAXIMUM LOAD DUAL (LBS.)3750
OVERALL DIAMETER (IN.)34.4
SECTION WIDTH (IN.)12.1
TREAD WIDTH (IN.)9.7
STATIC LOADED RADIUS (IN.)15.3
REVS. PER MILE616
TREAD DEPTH17.0
SHIP WEIGHT MIN. (LBS.)69.6

Tire Specifications

275/60R20 Change Size
  • TREADWEAR 660
  • TRACTION A
  • TEMPERATURE B
  • SPEED RATING T
  • LOAD INDEX 115
PRODUCT CODESUMI-AT215
TIRE SIZE275/60R20
SERVICE DESCRIPTION115T
Measuring Rim Width (IN.)8.0
APPROVED RIM WIDTH MIN. - MAX. (IN.)7.5 - 9.5
MAXIMUM AIR (LBS. PSI)51
MAXIMUM LOAD (LBS.)2679
LIMITED TREADWEAR WARRANTY65,000-Mile
MAXIMUM AIR DUAL (LBS. PSI)-
MAXIMUM LOAD DUAL (LBS.)-
OVERALL DIAMETER (IN.)33.0
SECTION WIDTH (IN.)10.9
TREAD WIDTH (IN.)9.3
STATIC LOADED RADIUS (IN.)15
REVS. PER MILE641
TREAD DEPTH12.0
SHIP WEIGHT MIN. (LBS.)46.3

Tire Specifications

LT285/75R16 Change Size
  • TREADWEAR
  • TRACTION
  • TEMPERATURE
  • SPEED RATING R
  • LOAD INDEX 126/123
PRODUCT CODESUMI-AT267
TIRE SIZELT285/75R16
SERVICE DESCRIPTION126/123R
Measuring Rim Width (IN.)8.0
APPROVED RIM WIDTH MIN. - MAX. (IN.)7.5 - 9.5
MAXIMUM AIR (LBS. PSI)80
MAXIMUM LOAD (LBS.)3750
LIMITED TREADWEAR WARRANTY65,000-Mile
MAXIMUM AIR DUAL (LBS. PSI)80
MAXIMUM LOAD DUAL (LBS.)3415
OVERALL DIAMETER (IN.)32.8
SECTION WIDTH (IN.)11.6
TREAD WIDTH (IN.)8.9
STATIC LOADED RADIUS (IN.)14.4
REVS. PER MILE649
TREAD DEPTH17.0
SHIP WEIGHT MIN. (LBS.)56.2

Tire Specifications

LT285/75R18 Change Size
  • TREADWEAR
  • TRACTION
  • TEMPERATURE
  • SPEED RATING Q
  • LOAD INDEX 129/126
PRODUCT CODESUMI-AT268
TIRE SIZELT285/75R18
SERVICE DESCRIPTION129/126Q
Measuring Rim Width (IN.)8.0
APPROVED RIM WIDTH MIN. - MAX. (IN.)7.5 - 9.5
MAXIMUM AIR (LBS. PSI)80
MAXIMUM LOAD (LBS.)4080
LIMITED TREADWEAR WARRANTY65,000-Mile
MAXIMUM AIR DUAL (LBS. PSI)80
MAXIMUM LOAD DUAL (LBS.)3750
OVERALL DIAMETER (IN.)34.8
SECTION WIDTH (IN.)11.3
TREAD WIDTH (IN.)8.9
STATIC LOADED RADIUS (IN.)15.5
REVS. PER MILE607
TREAD DEPTH17.0
SHIP WEIGHT MIN. (LBS.)65.8

Tire Specifications

LT275/65R20 Change Size
  • TREADWEAR
  • TRACTION
  • TEMPERATURE
  • SPEED RATING S
  • LOAD INDEX 126/123
PRODUCT CODESUMI-AT243
TIRE SIZELT275/65R20
SERVICE DESCRIPTION126/123S
Measuring Rim Width (IN.)8.0
APPROVED RIM WIDTH MIN. - MAX. (IN.)8.0 - 9.5
MAXIMUM AIR (LBS. PSI)80
MAXIMUM LOAD (LBS.)3750
LIMITED TREADWEAR WARRANTY65,000-Mile
MAXIMUM AIR DUAL (LBS. PSI)80
MAXIMUM LOAD DUAL (LBS.)3415
OVERALL DIAMETER (IN.)34.1
SECTION WIDTH (IN.)11.0
TREAD WIDTH (IN.)9.2
STATIC LOADED RADIUS (IN.)15.4
REVS. PER MILE621
TREAD DEPTH17.0
SHIP WEIGHT MIN. (LBS.)59.4

Tire Specifications

245/65R17 Change Size
  • TREADWEAR 660
  • TRACTION A
  • TEMPERATURE B
  • SPEED RATING T
  • LOAD INDEX 111
PRODUCT CODESUMI-AT255
TIRE SIZE245/65R17
SERVICE DESCRIPTION111T
Measuring Rim Width (IN.)7.0
APPROVED RIM WIDTH MIN. - MAX. (IN.)7.0 - 8.5
MAXIMUM AIR (LBS. PSI)50
MAXIMUM LOAD (LBS.)2403
LIMITED TREADWEAR WARRANTY65,000-Mile
MAXIMUM AIR DUAL (LBS. PSI)-
MAXIMUM LOAD DUAL (LBS.)-
OVERALL DIAMETER (IN.)29.4
SECTION WIDTH (IN.)10.0
TREAD WIDTH (IN.)8.3
STATIC LOADED RADIUS (IN.)13.2
REVS. PER MILE722
TREAD DEPTH12.0
SHIP WEIGHT MIN. (LBS.)37.9

Tire Specifications

265/65R17 Change Size
  • TREADWEAR 660
  • TRACTION A
  • TEMPERATURE B
  • SPEED RATING T
  • LOAD INDEX 112
PRODUCT CODESUMI-AT258
TIRE SIZE265/65R17
SERVICE DESCRIPTION112T
Measuring Rim Width (IN.)8.0
APPROVED RIM WIDTH MIN. - MAX. (IN.)7.5 - 9.5
MAXIMUM AIR (LBS. PSI)51
MAXIMUM LOAD (LBS.)2469
LIMITED TREADWEAR WARRANTY65,000-Mile
MAXIMUM AIR DUAL (LBS. PSI)-
MAXIMUM LOAD DUAL (LBS.)-
OVERALL DIAMETER (IN.)30.4
SECTION WIDTH (IN.)11.1
TREAD WIDTH (IN.)8.9
STATIC LOADED RADIUS (IN.)13.6
REVS. PER MILE699
TREAD DEPTH13.0
SHIP WEIGHT MIN. (LBS.)41.8

Tire Specifications

265/75R16 Change Size
  • TREADWEAR 660
  • TRACTION A
  • TEMPERATURE B
  • SPEED RATING T
  • LOAD INDEX 116
PRODUCT CODESUMI-AT281
TIRE SIZE265/75R16
SERVICE DESCRIPTION116T
Measuring Rim Width (IN.)7.5
APPROVED RIM WIDTH MIN. - MAX. (IN.)7.0 - 9.0
MAXIMUM AIR (LBS. PSI)51
MAXIMUM LOAD (LBS.)2756
LIMITED TREADWEAR WARRANTY65,000-Mile
MAXIMUM AIR DUAL (LBS. PSI)-
MAXIMUM LOAD DUAL (LBS.)-
OVERALL DIAMETER (IN.)31.7
SECTION WIDTH (IN.)10.7
TREAD WIDTH (IN.)8.3
STATIC LOADED RADIUS (IN.)13.9
REVS. PER MILE677
TREAD DEPTH12.0
SHIP WEIGHT MIN. (LBS.)43.7

Tire Specifications

LT275/65R18 Change Size
  • TREADWEAR
  • TRACTION
  • TEMPERATURE
  • SPEED RATING S
  • LOAD INDEX 123/120
PRODUCT CODESUMI-AT274
TIRE SIZELT275/65R18
SERVICE DESCRIPTION123/120S
Measuring Rim Width (IN.)8.0
APPROVED RIM WIDTH MIN. - MAX. (IN.)8.0 - 9.5
MAXIMUM AIR (LBS. PSI)80
MAXIMUM LOAD (LBS.)3415
LIMITED TREADWEAR WARRANTY65,000-Mile
MAXIMUM AIR DUAL (LBS. PSI)80
MAXIMUM LOAD DUAL (LBS.)3085
OVERALL DIAMETER (IN.)32.1
SECTION WIDTH (IN.)11.0
TREAD WIDTH (IN.)9.2
STATIC LOADED RADIUS (IN.)14.4
REVS. PER MILE663
TREAD DEPTH17.0
SHIP WEIGHT MIN. (LBS.)53.6

Tire Specifications

P285/70R17 Change Size
  • TREADWEAR 660
  • TRACTION A
  • TEMPERATURE B
  • SPEED RATING T
  • LOAD INDEX 117
PRODUCT CODESUMI-AT283
TIRE SIZEP285/70R17
SERVICE DESCRIPTION117T
Measuring Rim Width (IN.)8.5
APPROVED RIM WIDTH MIN. - MAX. (IN.)7.5 - 9.5
MAXIMUM AIR (LBS. PSI)51
MAXIMUM LOAD (LBS.)2833
LIMITED TREADWEAR WARRANTY65,000-Mile
MAXIMUM AIR DUAL (LBS. PSI)-
MAXIMUM LOAD DUAL (LBS.)-
OVERALL DIAMETER (IN.)32.8
SECTION WIDTH (IN.)11.5
TREAD WIDTH (IN.)9.4
STATIC LOADED RADIUS (IN.)14.6
REVS. PER MILE647
TREAD DEPTH12.0
SHIP WEIGHT MIN. (LBS.)48.7

Find a nearby Sumitomo Dealer

Found the perfect tires? Find your local Sumitomo dealer for great deals, installation, and more.

store finder
You may also be interested in
HTR ENHANCE CX2
Premium Touring SUV/CUV Performance
Up to 65K Limited Treadwear

comfort-ride

treadlife

dry-handling

view details
view details
ENCOUNTER AT
All-Terrain SUV/LT
Up to 60K Limited Treadwear

offroad-traction

snow-ice-traction

treadlife

view details
view details
